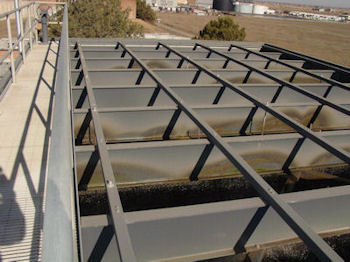

Fiberglass Decking and Grating

DURADEK® and DURAGRID® gratings are lightweight and, therefore, easily handled in installation, and cost less to ship than steel grating. A patented 3-piece cross-rod system mechanically locks and chemically bonds the cross-rods to the web of each bearing bar. This separates and affixes bearing bars firmly in position and distributes concentrated loads to adjacent bars. The system allows DURADEK® and DURAGRID® grating to be cut and fabricated like a solid sheet.

DURAGRATE® molded fiberglass grating is a strong mesh grating panel that is the chemical resistant flooring choice for many industrial applications. DURAGRATE® panels are molded in one piece and feature a concave non-slip walking surface. The cost- effective panels allow for efficient on-site cutting to minimize grating waste and load bearing bars in both directions allow for use without continuous side support. DURAGRATE® molded fiberglass grating is significantly lighter in weight than metallic gratings and the high resin content provides excellent corrosion resistance and requires very little maintenance. A higher safety factor is achieved by designing in a higher glass content at the bottom of the grating for greater tensile strength. DURAGRATE® molded fiberglass grating is:

• Corrosion Resistant
• Easy To Fabricate
• Fire Retardant
• Impact Resistant
• Low in Maintenance
• Low in Conductivity
• Lightweight
• Bidirectional Load Bearing
• Easy To Install
• Cost Effective
• Uniform in Appearance

Standard carpenter's tools with abrasive cutting edges may be used; just coat the cut ends with resin sealer and install.
